Air Flowmeters

FM187B-15L-00
FM187B-15L-P
FMD187B-15L-00-P
FMD187B-15L-00
FMT187B-15L-00
FM187B-15L-DHE
Title:

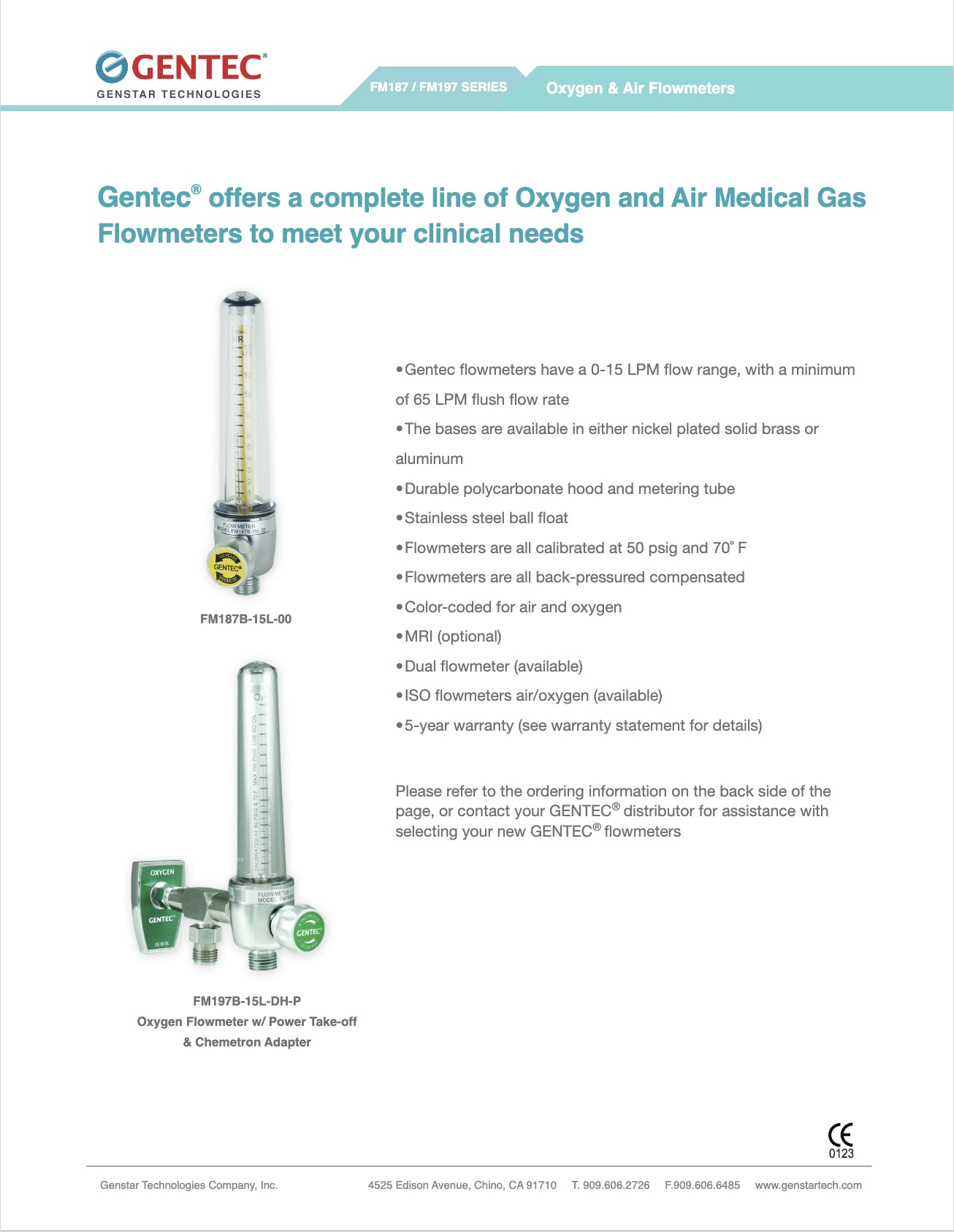

Air Flowmeters
FM187 Series (MRI Compatible)

Available in Aluminum and Brass.

Features

• Gentec flowmeters have a 0-15 LPM flow range, with a minimum of 65 LPM flush flow rate
• The bases are available in either nickel plated solid brass or aluminum
• Durable polycarbonate hood and metering tube
• Stainless steel ball float
• Flowmeters are all calibrated at 50 psig and 70˚ F
• Flowmeters are all back-pressured compensated
• MRI (optional)
• Dual flowmeter (available)
• ISO flowmeters oxygen (available)
• 5-year warranty
MEDICAL AIR (ALUMINUM) FLOWMETERS, 0-15 LPMMEDICAL AIR (BRASS) FLOWMETERS, 0-15 LPMAdapter
FM187A-15L-00FM187B-15L-00None
FM187A-15L-OHFM187B-15L-OHOhio/Ohmeda
FM187A-15L-DSFM187B-15L-DSDISS Nut & Nipple
FM187A-15L-CHFM187B-15L-CHChemetron
FM187A-15L-PBFM187B-15L-PBPuritan-Bennett
FM187A-15L-DHFM187B-15L-DHDISS Hand-Tight
FM187A-15L-DH-PFM187B-15L-DH-PPower Take-Off (DISS male w/ Check valve)





• Weight: 4.24oz. / 122g
• Increment: 0-15 LPM
• Flush flow rate: 65LPM
• Max Inlet Pressure: 100psig
• PTO Flow Rate: Over 100 LPM

• Weight: 4.24 oz./122 g
• Length: 6 in.

• Body: Aluminum and Brass
• Hood & meter: Polycarbonate
• Ball float: Stainless Steel
