The LC Series Regulator is available in three functions: Pressure Build, Economizer, and the Combination Pressure Build/Economizer. All regulators are cleaned for oxygen use per CGA 4.1.
Features
• Maximum Working Pressure: 550 psi (38 bar)
• Working Temperature: -320~165˚F (-196~74˚C)
• Conforms to CGA E-4 Standard for Gas Pressure Regulators
• Cleaned for oxygen service per CGA 4.1
Model Number | Maximum Inlet Pressure psi (bar) | Operating Temperature ˚F(˚C) | Inlet/Outlet Connection | Set Pressure psi (bar) | Pressure Range psi (bar) |
LC851-125 | 550 (38) | -320~165 (-196~74) | 1/4 NPT(F) | 125 (8.5) | 25~250 (1.7~17) |
| LC851-300 | 550 (38) | -320~165 (-196~74) | 1/4 NPT(F) | 300 (21) | 125~350 (8.5~24) |
| LCE851-22 | 550 (38) | -320~165 (-196~74) | 1/4 NPT(F) | 22 (1.5) | 10~150 (0.7~10.3) |
| LCE851-70 | 550 (38) | -320~165 (-196~74) | 1/4 NPT(F) | 70 (5.0) | 10~150 (0.7~10.3) |
LCE851-140 | 550 (38) | -320~165 (-196~74) | 1/4 NPT(F) | 140 (9.7) | 10~150 (0.7~10.3) |
LCE851-325 | 550 (38) | -320~165 (-196~74) | 1/4 NPT(F) | 325 (22.4) | 150~350 (10.33~24) |
• Bonnet and Body: Brass
• Seat: PTFE
• Spring: Stainless Steel
• Diaphragm: PCTFE, Phosphor Bronze

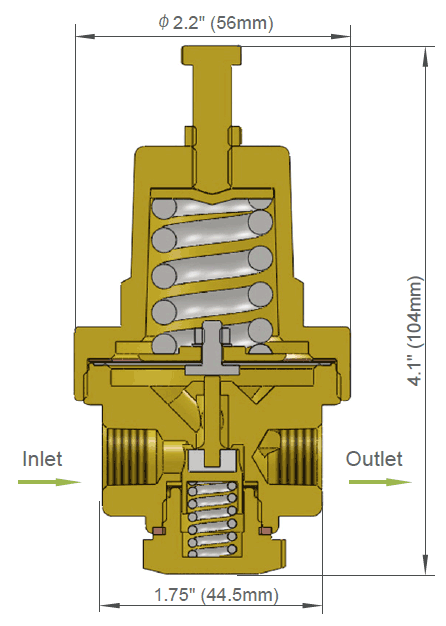

LC851

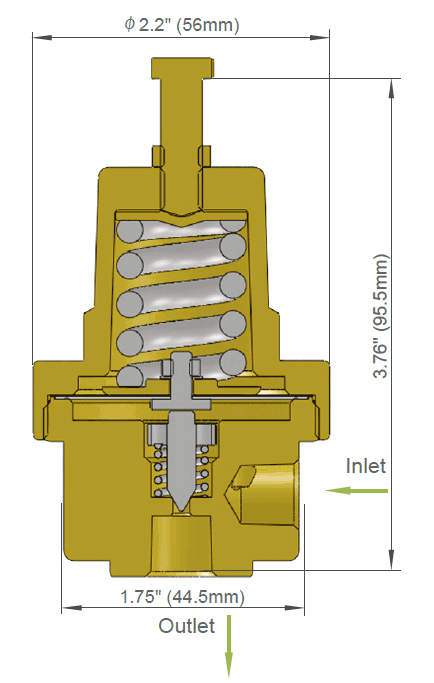

LCE851
