GAS ALARM PANELS

GAPW Series Gas Pressure Alarm Product Image
Title:
GAS ALARM PANELS
GAPW Series

GENTEC® GAPW series gas alarm panel is designed to simultaneously monitor two gas supply systems. When the pressure is lower than set pressure, light-indicated and audible alarm will be triggered to inform operator to
check.

Features

•Two-input dry contact signal (electronic contact gauge or pressure switch)
•Aluminum alloy cover with compact design of 88*38*120 mm
•Extra safety with external DC 24V adapter power supply
•Sound and light alarm indication, adjustable alarm sound
•The audible alarm can be muted by the silence button
•When one alarm signal is alarmed and muted, the activation of the other alarm signal will not be hindered
•Built-in PCB board plug-in blocks to facilitate input and output signal lines connection
•Optional strobe light for distance sound and light alarm
•Rated IP51 Enclosure: Protected from limited dust ingress and dripping water

SERIESMONITORING GAS CHANNELVOLTAGEOUTLET TYPE
GAPW Series
Gas Alarm Panel
02: 2 GasesDC 24V (2A)None: without Strobe Light, without Output VoltageL: with Strobe LightV: without Strobe Light, with Output Voltage DC 24V 1.5A only

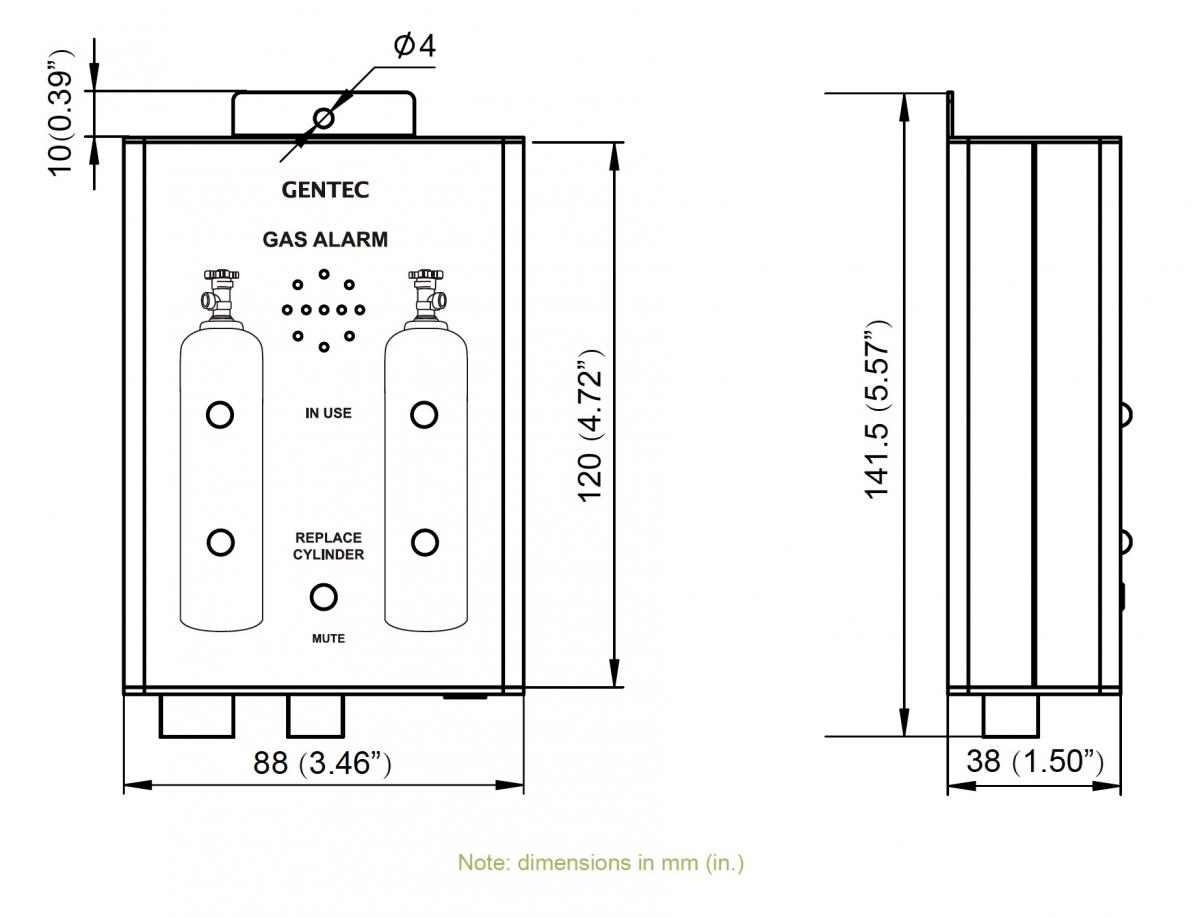

GAPW series dimensions

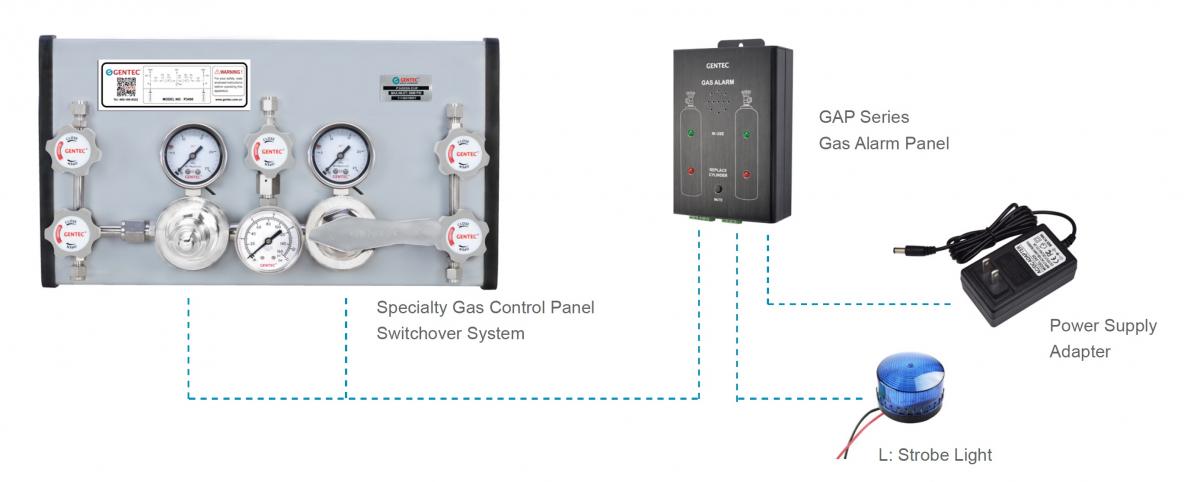

GAPW application
