Venturi Suction Regulators

Venturi Suction Regulator
Venturi Suction Regulator
Venturi Suction Regulators
880VS Series

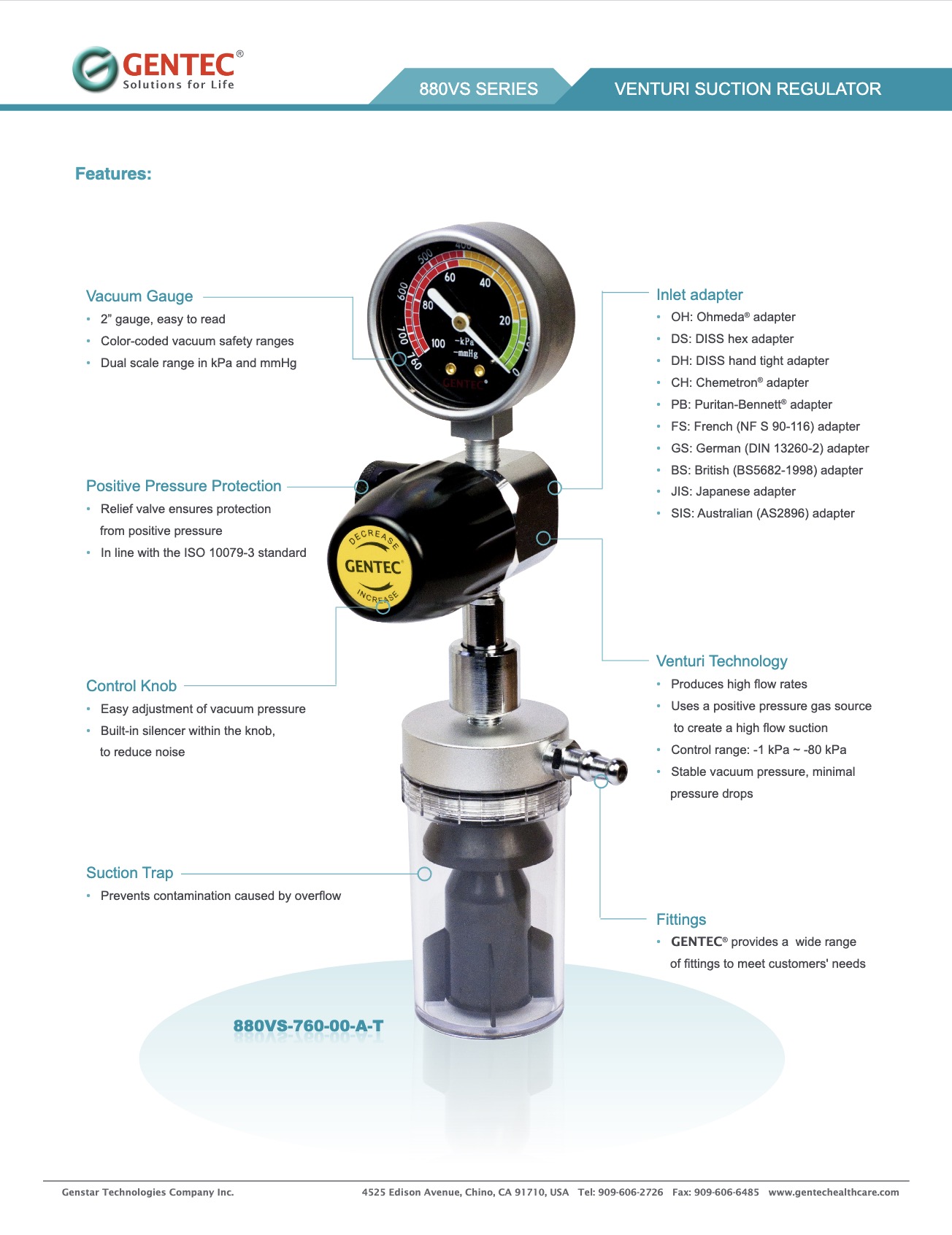

Genstar Technologies is proud to announce the addition of the Gentec Venturi suction regulator to our portfolio of vacuum regulators, with its unique design, it can used with alternative vacuum sources, either air or oxygen. The venturi suction unit can be used in all hospital applications, from patient transport to general purpose room suction. The Venturi suction regulator has a very user friendly knob that can regulate the vacuum from 0-760 mm/hg, it provides vacuum for discharge, vomit and low vacuum for key parts of the lower body cavity.


• 2" gauge, easy to read
• Color coded flow ranges
• Dual scale mmHg and kPa
• Glow in the dark gauge
• Positive pressure relief valve provides safe use
• ISO 10079-3 Compliant
• Easy adjustment of vacuum pressure
• Suction trap prevents contamination caused by overflow

880VS Series

Measuring Range

Vacuum Connection

Driving Gas

Suction Connection

880VS760: 0-760 mmHg

00: No adapter, 1/8" NPT (F)
OH: (Ohmeda) adapter
DH: (DISS hand-tight) adapter
DS: (DISS Hex) adapter
CH: (Chemetron) adapter
PB: (Puritan-Bennet) adapter
FS: (FS) adapter
GS: (GS) adapter
BS: (BS) adapter
JIS: (JIS) adapter
SIS: (SIS) adapter
OQ: (OQ) adapter
OE: (OE) adapter

A: Medical Air
O: Oxygen
00: No adapter, 1/8" NPT (F)
T: With suction trap aseembly (complete)
TD: With suction trap (Completed Diss female nut)
TH: With suction trap (complete DISS female vacuum hand-tight)
H: With Tubing nipple (5/16" hose barb)
D: With DISS male vacuum
N: With NIST adapter
F: With trap fitting only (no trap)


• Dimensions without adapters or fittings (H x W x D): 3.54" (90 mm) x 3.54" (90mm) x 2.36" (60mm)
• Control range: -1kPa ~ - 80kPa
• Max. suction: >25L / min
• Source of pressure: 300 ~ 500kPa
• Vacuum control: Needle valve control venturi
• Vacuum Gauge Range: 0 ~ -100kPa / 0~760 mmHg
